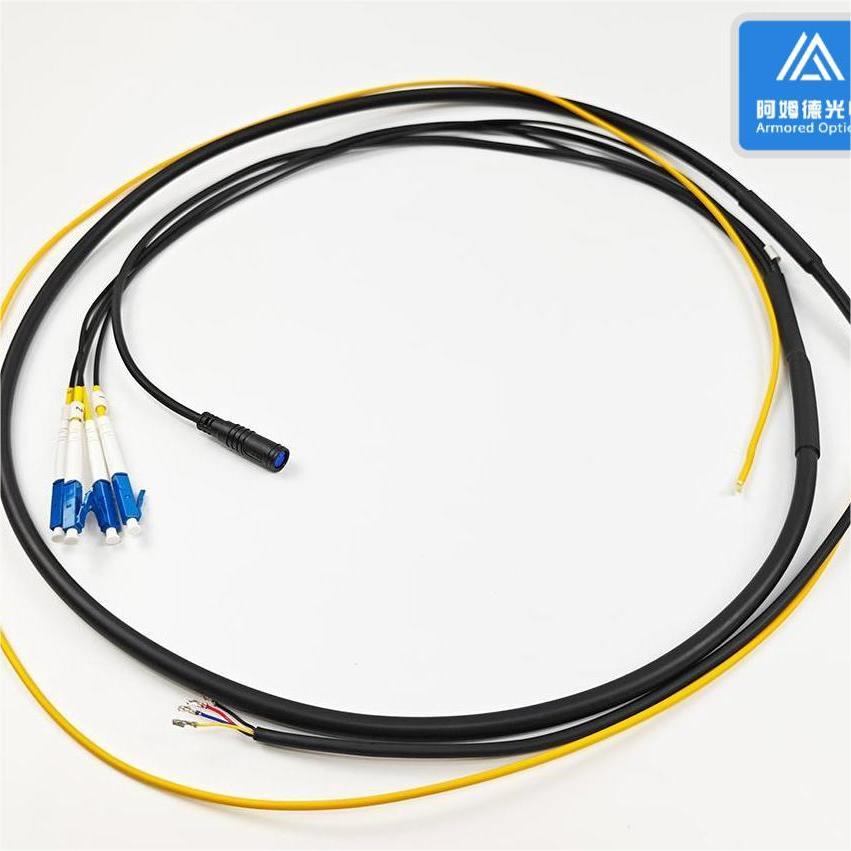

Electrical Hybrid Fiber Optic Cable 4 Cores SM G657A2 Fiber 4pcs 0.17² 7.0mm

Product Categories
Jiang Su Armored Optical Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Electrical Hybrid Fiber Optic Cable 4 Cores SM G657A2 Fiber 4pcs 0.17² 7.0mm

  • 1
  • 2
  • 3

Brand Name : JIANGSU ARMORED

Model Number : 4x M8-LC/UPC

Certification : ROHS

Place of Origin : CHINA

MOQ : 3000m Cable

Price : To Be Advised

Supply Ability : 2000pcs Connector Per Day

Delivery Time : 3 Working Weeks

Packaging Details : Plastic bags , Carton, and Pallet. By Sea or Air shipment

Name : Hybrid Cable Patch Cord

Fiber Mode : Single Mode

Diameter : 7.0mm

Color : Black

Jacket : LSZH

Connector : LC and M8

Cable length : 2M

Application : FTTX

Contact Now

Optical-Electrical Hybrid Cable 4 Cores SM G657A2 Fiber And 4pcs 0.17² Power Cable 7.0mm Black LSZH

Optical-Electrical Hybrid Cable 4 Cores SM Fiber And 4pcs 0.17² Power Cabl 7.0mm Black LSZH Jacket

Hybrid Cable Assembly, Hybrid Patch Cord

Optical-Electrical Hybrid Cable is a composite cable that contains both optical fiber and power cable, and is widely used in applications where optical and electrical signals need to be transmitted together. Hybrid Cable combines the high-speed data transmission capability of optical fiber and the power transmission function of cable, and is suitable for communication, data center, broadcasting and industrial automation.

Optical-Electrical Hybrid Cable​ Parameter

Fiber 4 cores 0.6mm or 0.9mm tight buffer G657A2
Fiber Attenuation ≤0.3dB/km@1550nm , ≤0.4dB/km@1310nm
Power Cable Diameter 1.30+0.10 mm
Power Cable Quantity 4 pcs
Cable Diameter 7.0±0.3mm
Outer Jacket black LSZH
Bending Radius Static 10D, Dynamic 20D
Temperature Working temperature: -20℃～+60℃；
Installation temperature: :-5℃～+50℃；
Storage temperature: :-20℃～+75℃
Crush (Max.) 100N/10cm

Electrical Hybrid Fiber Optic Cable 4 Cores SM G657A2 Fiber 4pcs 0.17² 7.0mm

Electrical Hybrid Fiber Optic Cable 4 Cores SM G657A2 Fiber 4pcs 0.17² 7.0mm
