8 Core Armored Patch Cord 10m SC LC 6.5mm Blue LSZH Patch Jumper

  • 1
  • 2
  • 3

Brand Name : JIANGSU ARMORED

Model Number : 8F-A2-5.0-PVC-SC-LC-10M

Certification : ROHS

Place of Origin : CHINA

MOQ : 1000m cable

Price : To be advised

Supply Ability : 4000pcs connector per day

Delivery Time : 3 working weeks

Packaging Details : Plastic bags , Carton, and Pallet, By Sea or Air Shipment

Name : 8 Cores Armored Patch Cord

Fiber Mode : Single Mode

Color : Blue

Jacket : PVC

Fan-out length : 30-50cm

Length : 10m

Flame Rating : OFCR

Application : FTTH

Feature : Rodent Resisitant

Contact Now

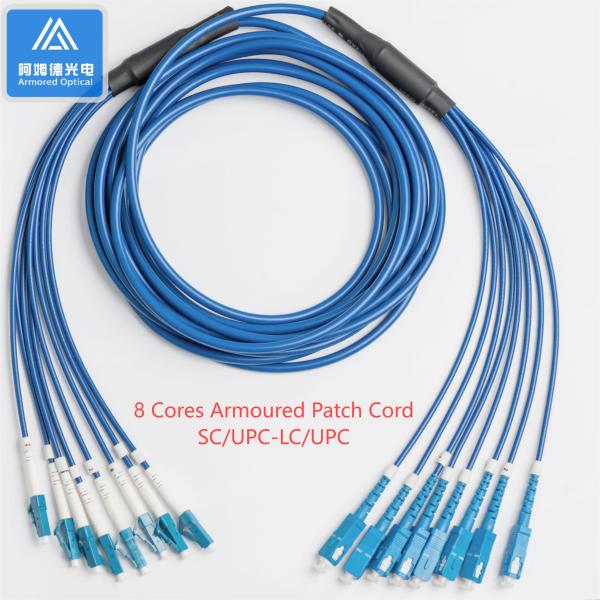

8 Cores Armored Patch Cord 10m SC-LC 6.5mm Blue LSZH Rodent-Resistant Patch Jumper

8 Cores Armored Patch Cord 10m SC-LC 6.5mm Blue LSZH Rodent-Resistant Patch Jumper

Versatility

Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC), making them adaptable to different networking and communications equipment.

Flexibility

Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.

Item Armored patch cord
Fiber G657A, OM1, OM2, OM3, OM4
Cable diameter 6.5 MM
Cable jacket PVC
Length 1M, 2M, 10M,......200M
Insert loss ＜ 0.30dB
Return loss ≥50dB (UPC), ≥60dB (APC), ≥25dB (MM)
Temperature LSZH: -40℃~80℃
Fan-out cable length 30-50cm, length can be customized.

Cable Grade

The following standard can be choosen,

IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, OFCP, etc.

Comply with ROHS

Cable construction example for reference,

8 Core Armored Patch Cord 10m SC LC 6.5mm Blue LSZH Patch Jumper

Feature

  • Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • It has greater durability in resisting pulls, strains and impacts from cabling installation.
  • Different jacket material fit for different environments.
  • UV-resistant

Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, such as
  • Used in communications in data center
  • Used in the open field, connections between optical equipment.

Advantage

  • The cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • The maintain cost will be saved.
  • The cable with good tension and pressure performance.
  • We’re factory. The products can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.

Service

  • 100% testing before shipment.
  • We’re factory, good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.

Production line show:

8 Core Armored Patch Cord 10m SC LC 6.5mm Blue LSZH Patch Jumper

8 Core Armored Patch Cord 10m SC LC 6.5mm Blue LSZH Patch Jumper

8 Core Armored Patch Cord 10m SC LC 6.5mm Blue LSZH Patch Jumper
